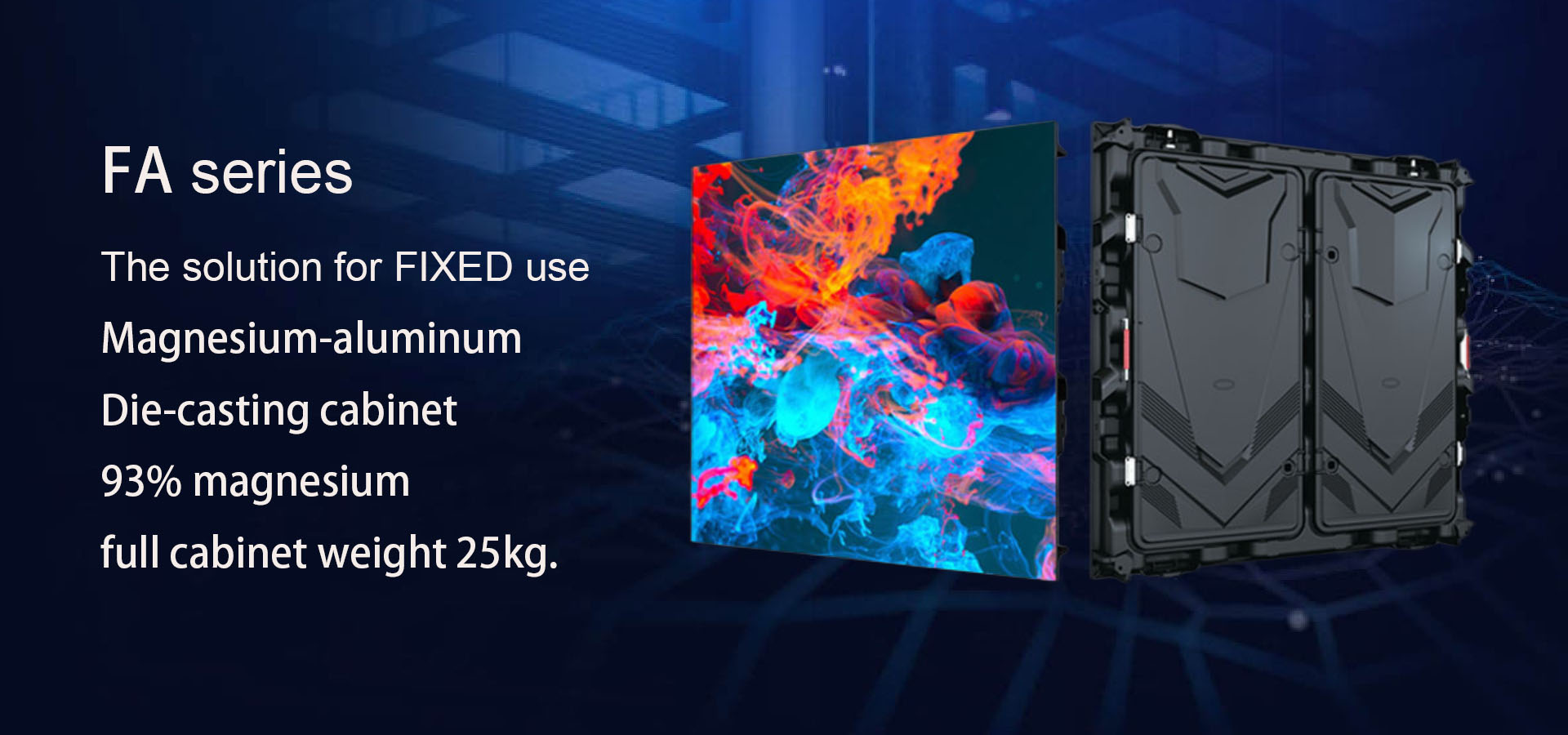

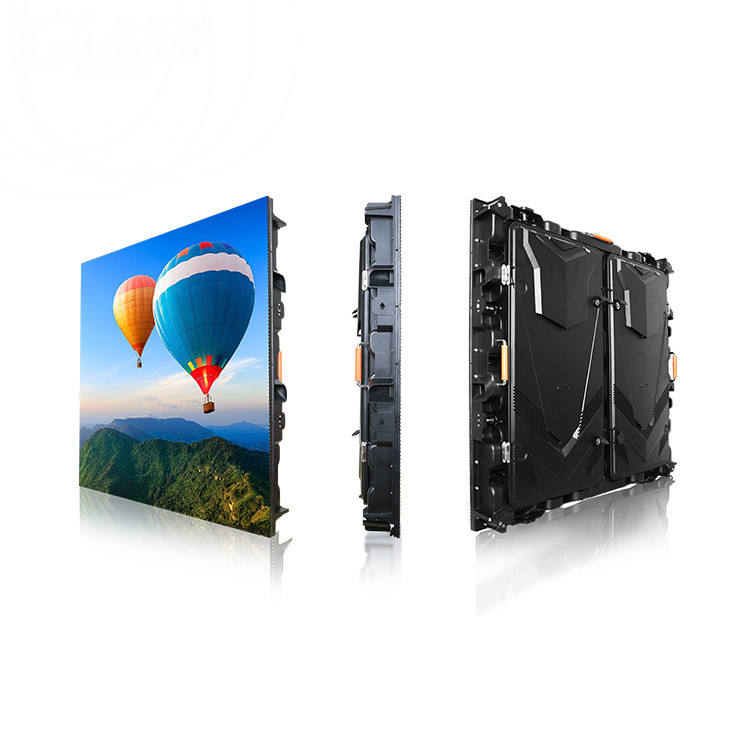

FA Series



P3 | P4 | P5 | P6 | P8 | P10 |

• Alunimun die casting cabinet
• Super thin,light
• Front & back access
• High waterproof IP65
• Faster & easier installation

Save transportation costs

The total thickness of the screen is 125mm (box 110mm + module 15mm),

The packaging volume is reduced by 40%, which greatly saves transportation costs.

Moreover, the special structure of the rental LED display screen can better perform large-screen splicing.

Energy-saving and power-saving, quick installation

Using energy-saving IC, the average power consumption is only 150W/square meter.

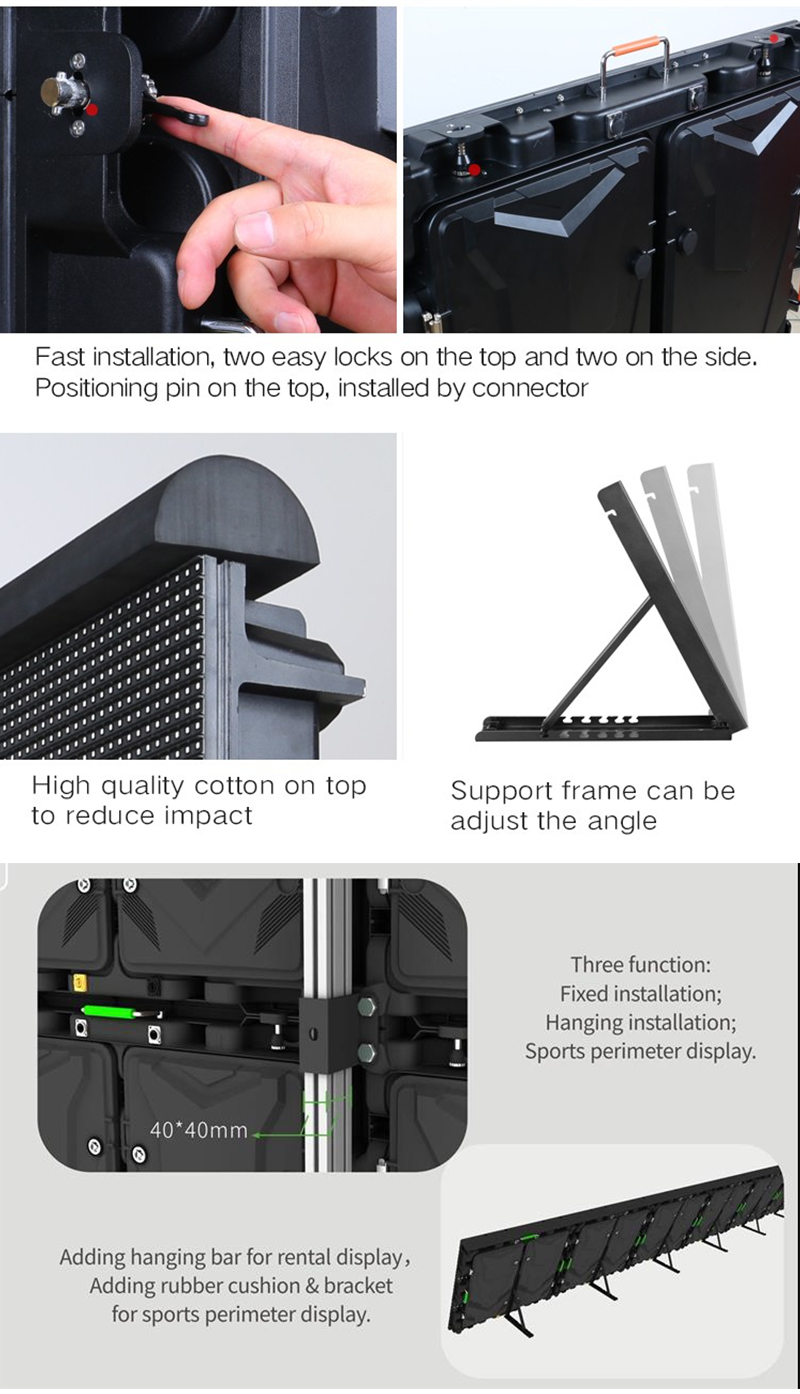

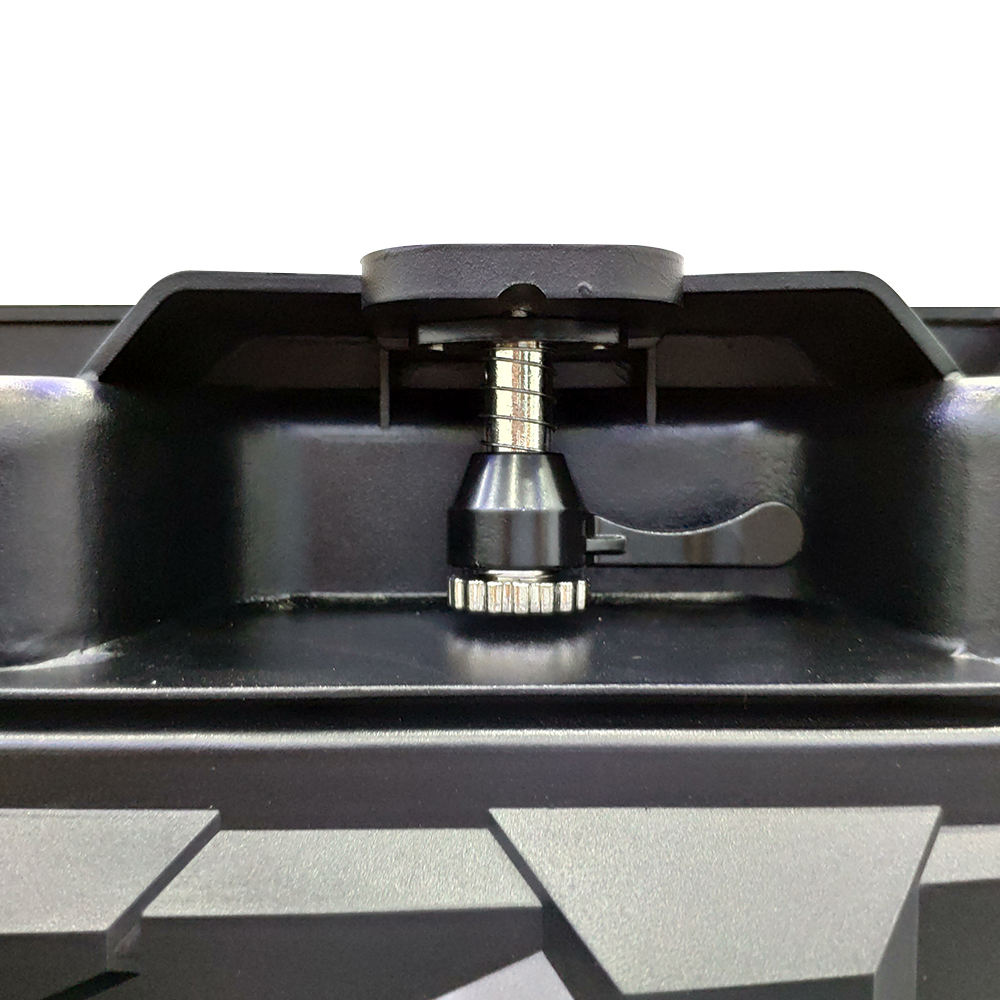

A box with 4 quick locks enables quick assembly, one push and one pull, the installation is completed in an instant.

Perfect flatness

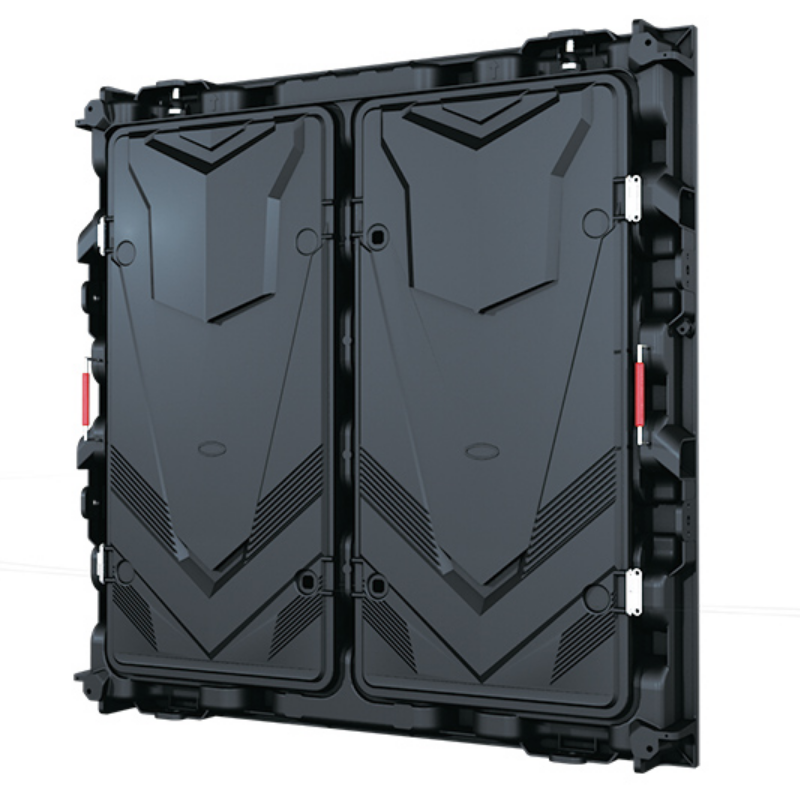

The box body is formed by die casting at one time, with high-precision CNC fine washing,

The accuracy of the diagonal and the plane is accurate to millimeters.

can be stadium perimeter LED screen

Parameter
