Professional LED Screen Manufacturer

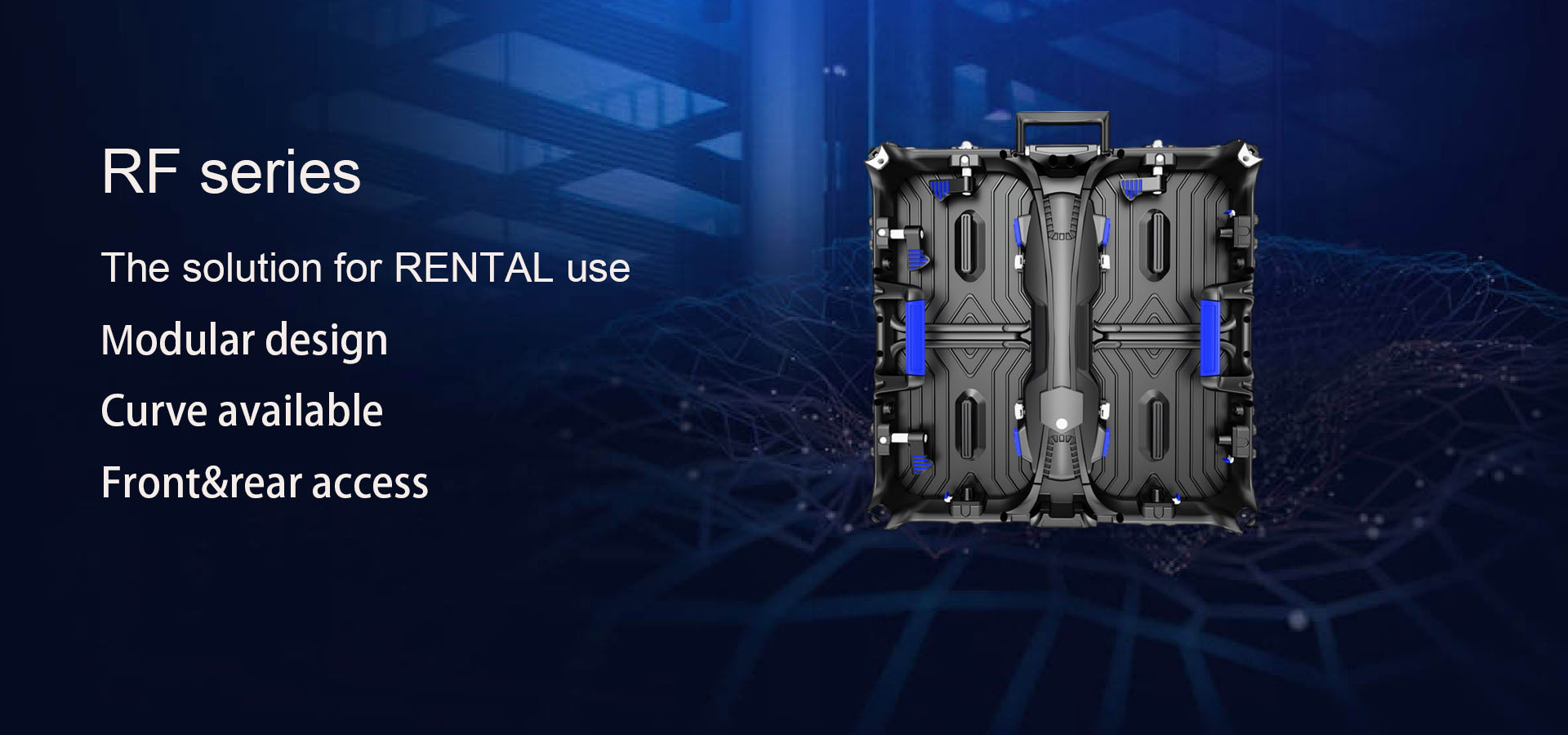

RF SERIES FOR OUTDOOR AND INDOOR LED SCREEN
P2.6丨P2.9丨 P3.9 丨P4.8

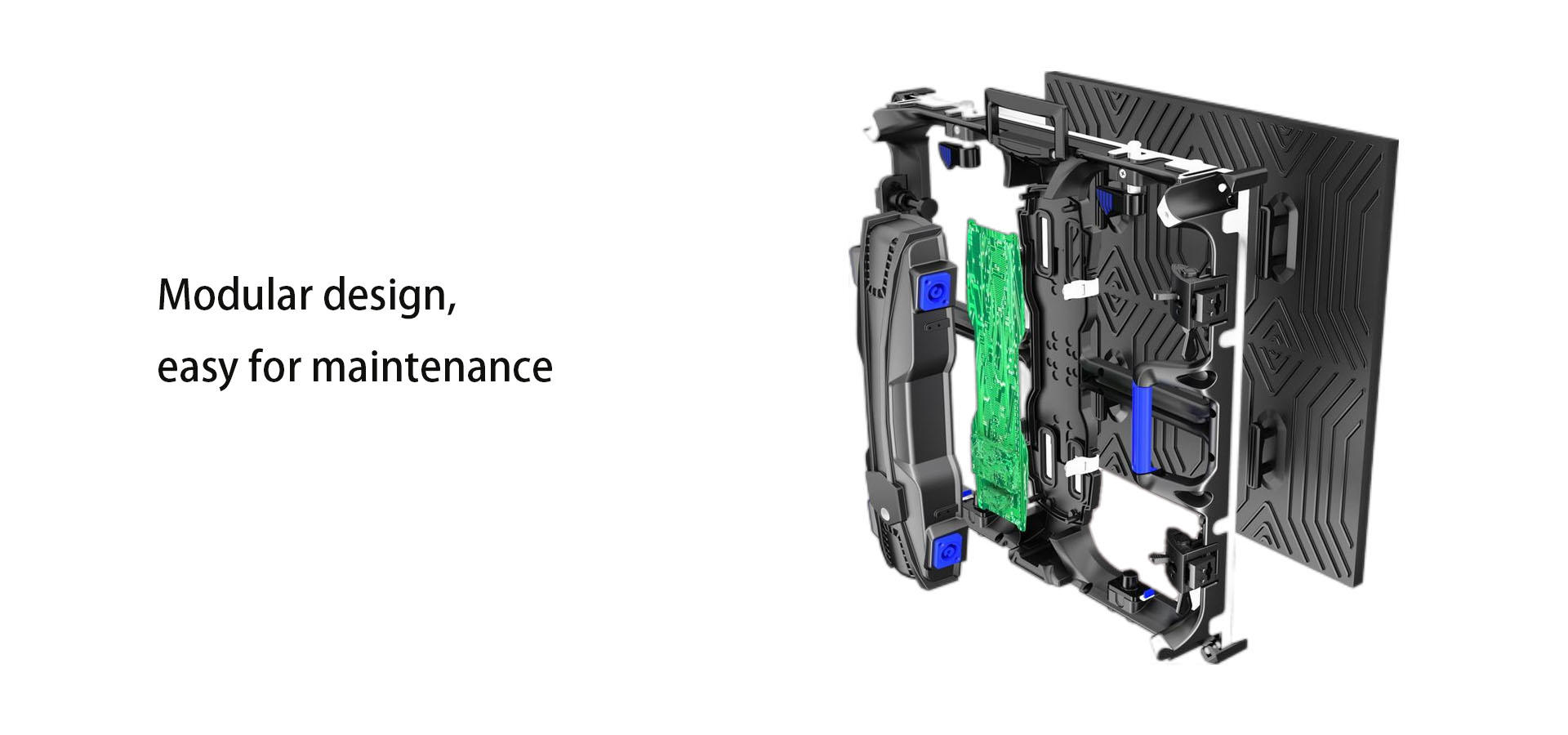

- Modular design

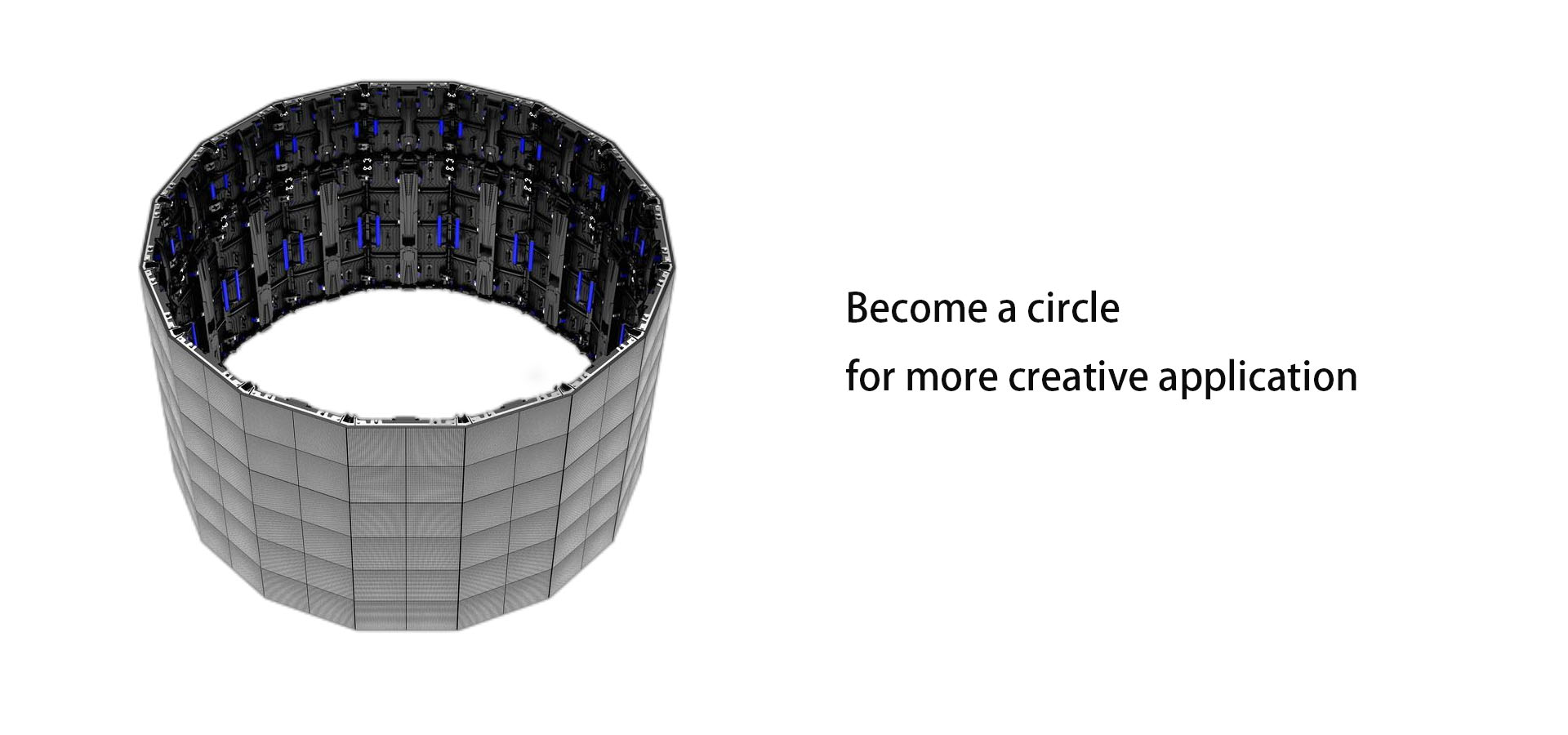

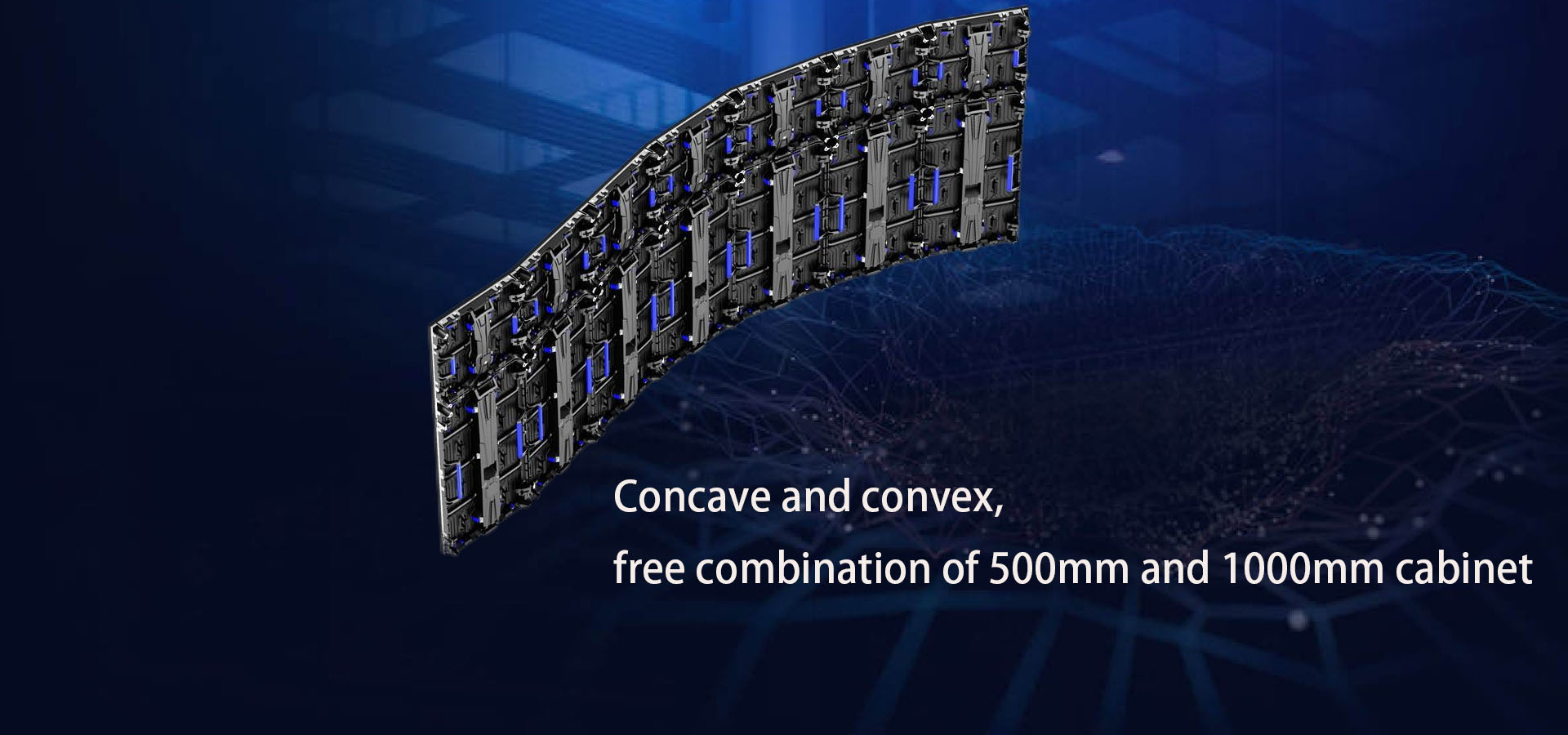

- Straight & curved installation
- Wide viewing angle
- High quality performance
- Faster & easier installation
| INDOOR | OUTDOOR | |||||
| pixel pitch | 2.6mm | 2.9mm | 3.9mm | 3.9mm | 4.8mm | 5.9mm |
| LED | SMD2121 | SMD2121 | SMD2121 | SMD1921 | SMD1921 | SMD1921 |
| cabinet size | 500*500/1000*85mm | 500*500/1000*85mm | 500*500/1000*85mm | 500*500/1000*85mm | 500*500/1000*85mm | 500*500/1000*85mm |
| cabinet resoluiton | 192*192/192*384 | 168*168/168*336 | 160*160 | 128*96 | 96*96 | 96*96 |
| cabinet weight | 8/12.5kg | 8/12.5kg | 8/12.5kg | 8/12.5kg | 8/12.5kg | 8/12.5kg |
| module size | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| brightness | >900nits | >1000nits | >1000nits | >5500nits | >5500nits | >5500nits |
| Application | indoor | indoor | indoor | outdoor | outdoor | outdoor |
| grey scale | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
| refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
| IP grade | IP40/IP20 | IP40/IP20 | IP40/IP20 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Max power consumption | 400W/㎡ | 490W/㎡ | 480W/㎡ | 640W/㎡ | 660W/㎡ | 620W/㎡ |
| Maintenance | rear&front | rear&front | rear&front | rear&front | rear&front | rear&front |
