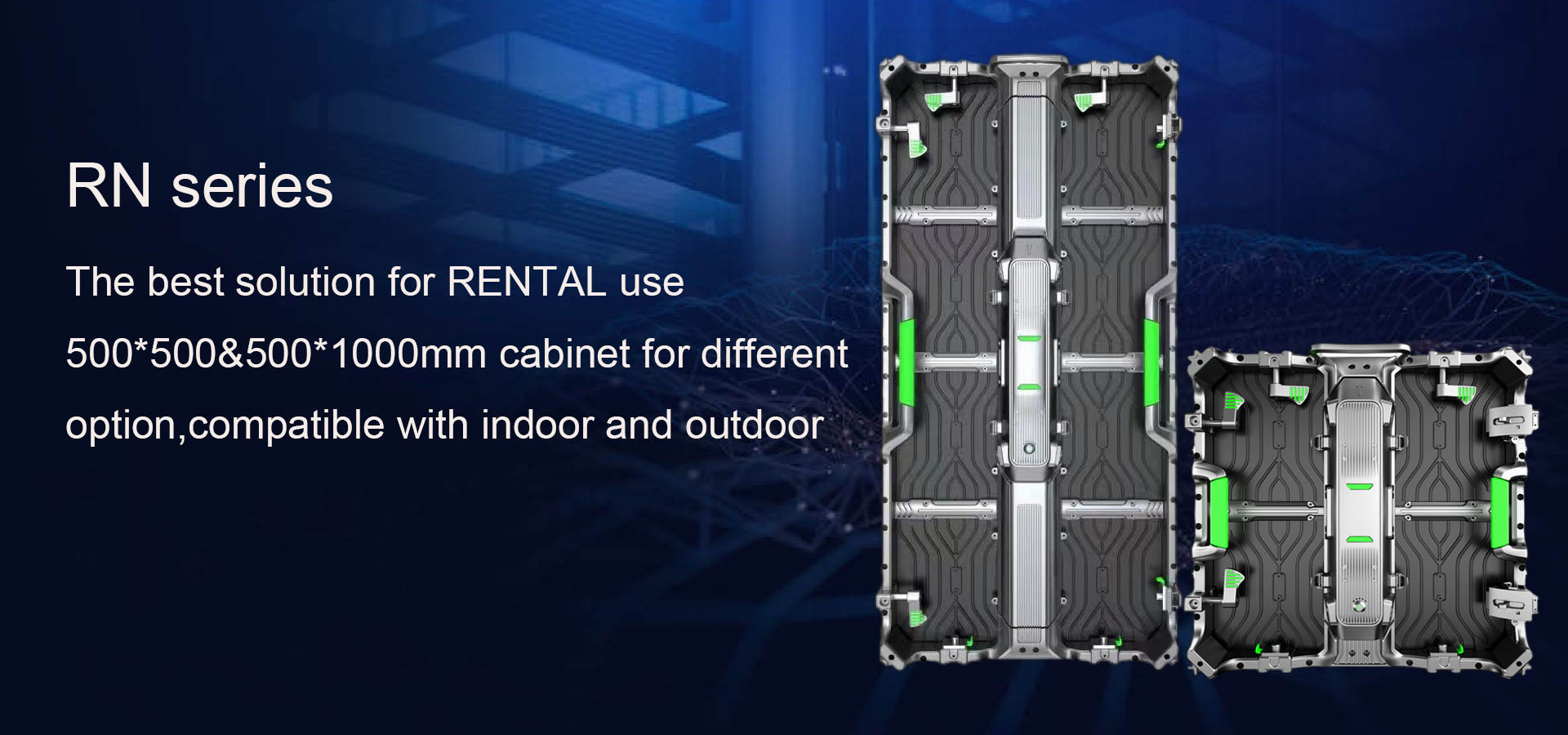

RN SERIES FOR OUTDOOR AND INDOOR LED SCREEN



P2.6丨P2.9丨 P3.9 丨P4.8

  • Modular design
  • Straight & curved installation
  • Wide viewing angle
  • High quality performance
  • Faster & easier installation

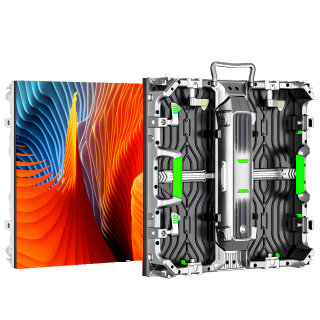

LED rental display is made of die-cast aluminum cabinet, the cabinet size can be 500mm and 1000mm,super light and super thin.availabe for indoor

Front Maintenance

The magnet LED modules can be dismantled by tools on front side

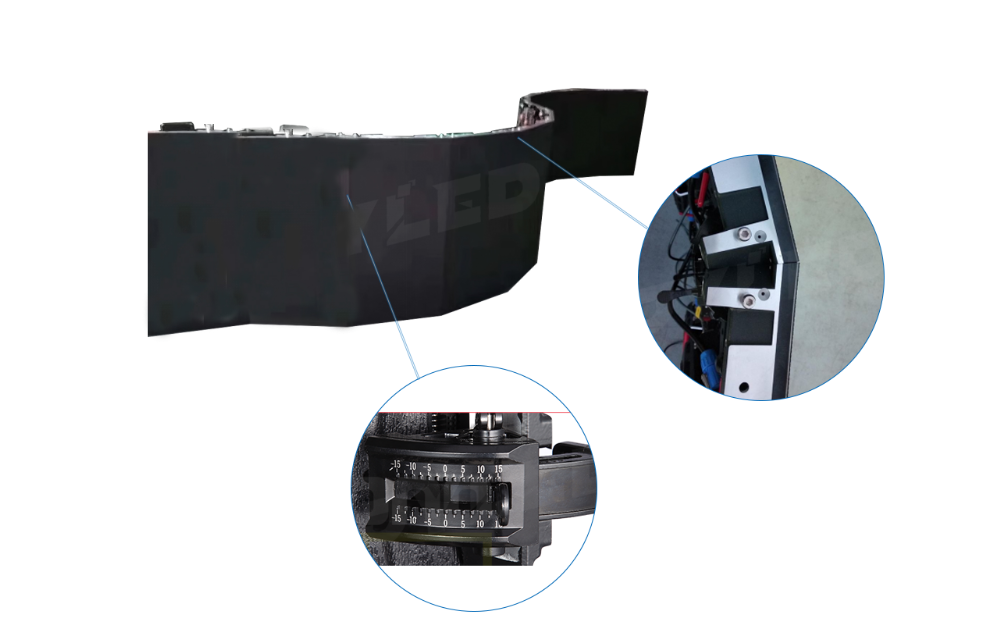

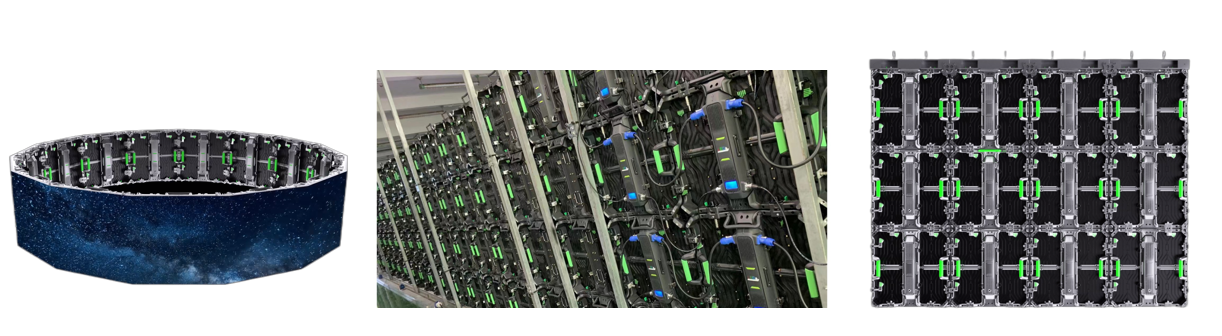

Curve installation

The workers maintain LED die-casting aluminum cabinet by magnetic attraction

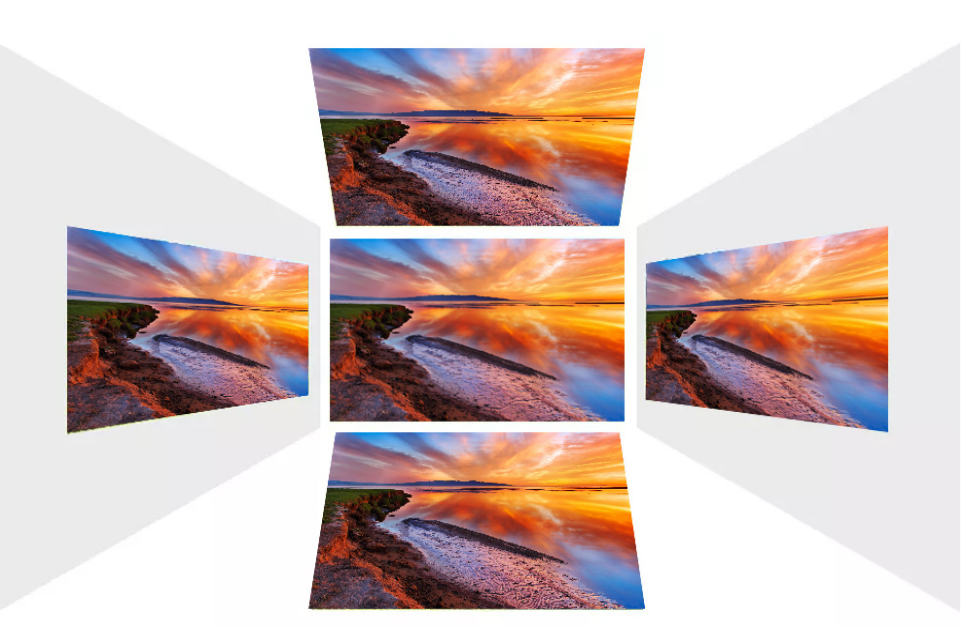

Wide Viewing Angle

Rental LED display has a very wide field of

viewing angle,+/-140°

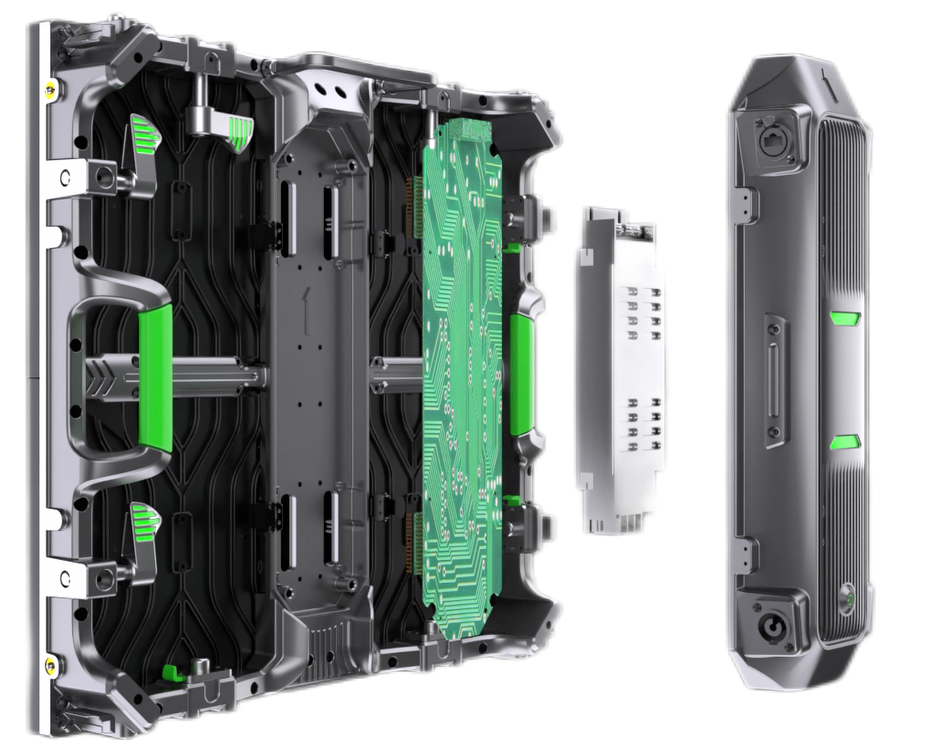

Modular design

Much more easier to do the maitenance,5 seconds to replace a new one modular back cover



High Quality Definition

you can enjoy the ultimate high-definition picture,video









Parameter


INDOOROUTDOOR
 pixel pitch2.6mm2.9mm3.9mm3.9mm4.8mm5.9mm
LEDSMD2121SMD2121SMD2121SMD1921SMD1921SMD1921
cabinet size500*500/1000*85mm500*500/1000*85mm500*500/1000*85mm500*500/1000*85mm500*500/1000*85mm500*500/1000*85mm
cabinet resoluiton192*192/192*384168*168/168*336160*160128*9696*9696*96
cabinet weight8/12.5kg8/12.5kg8/12.5kg8/12.5kg8/12.5kg8/12.5kg
module size250*250mm250*250mm250*250mm250*250mm250*250mm250*250mm
brightness>900nits>1000nits>1000nits>5500nits>5500nits>5500nits
Applicationindoorindoorindooroutdooroutdooroutdoor
grey scale16bit16bit16bit16bit16bit16bit
refresh rate1920-3840Hz1920-3840Hz1920-3840Hz1920-3840Hz1920-3840Hz1920-3840Hz
IP gradeIP40/IP20IP40/IP20IP40/IP20IP65/IP54IP65/IP54IP65/IP54
Max power consumption400W/㎡490W/㎡480W/㎡640W/㎡660W/㎡620W/㎡
Maintenance rear&frontrear&front rear&front rear&frontrear&frontrear&front
