Professional LED Screen Manufacturer
LED FLOOR TILE DISPLAY SCREEN
丨P3.9丨 P4.8 丨P6.25
- Strong Load Capacity
- Stable Performance
- Bearing capacity of 1500kg/㎡
- indoor & outdoor use

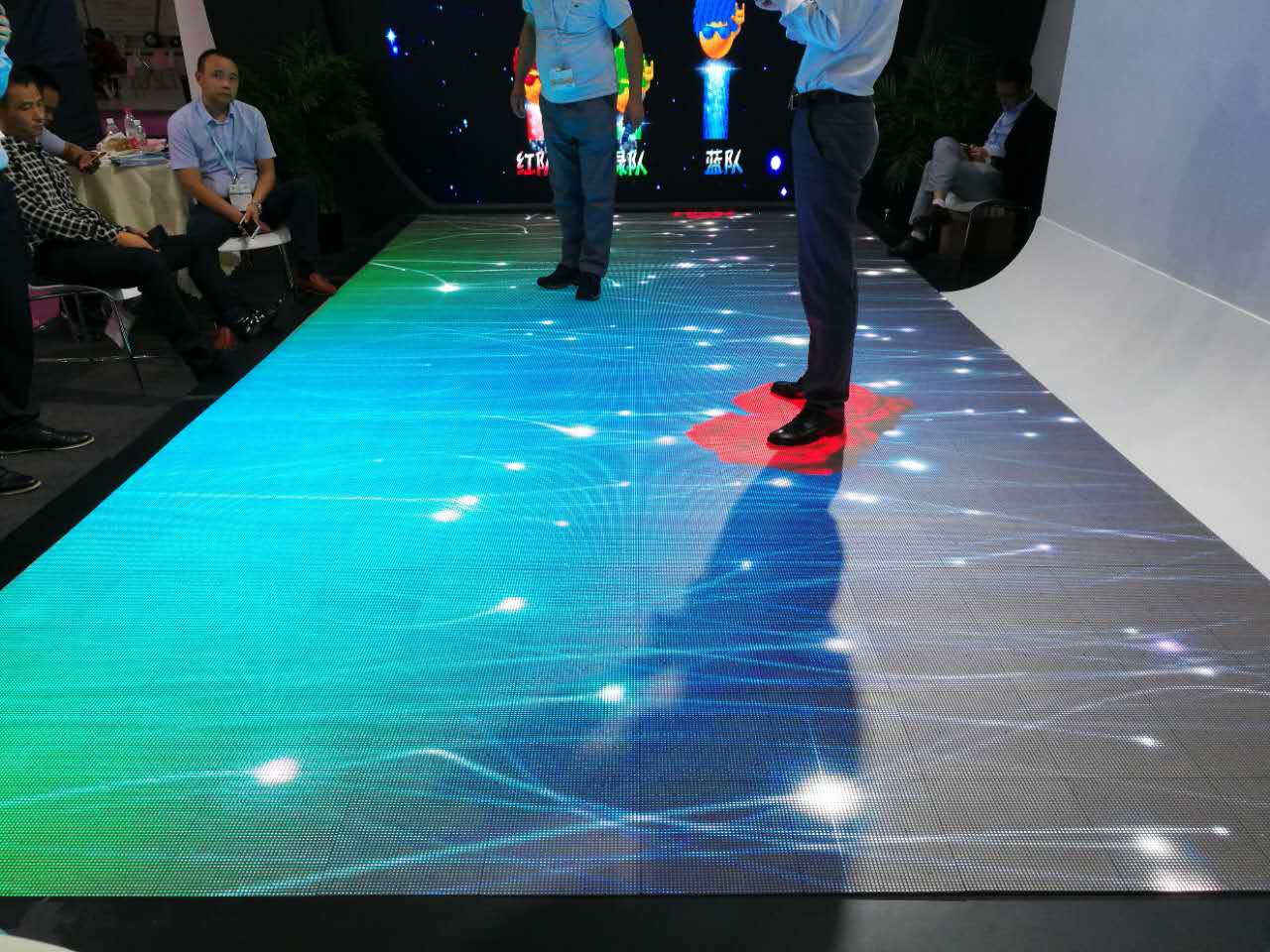

BOLO is a professional manufacturer of LED tile screen,LED floor tile display screen with built-in sensor system,Can follow the human activity to present the picture,Enhance the sense of immersion and active participation
Strong And Sturdy
Thicker plates, safe bearing capacity of 1500kg/㎡
Front and rear IP65 protection grade

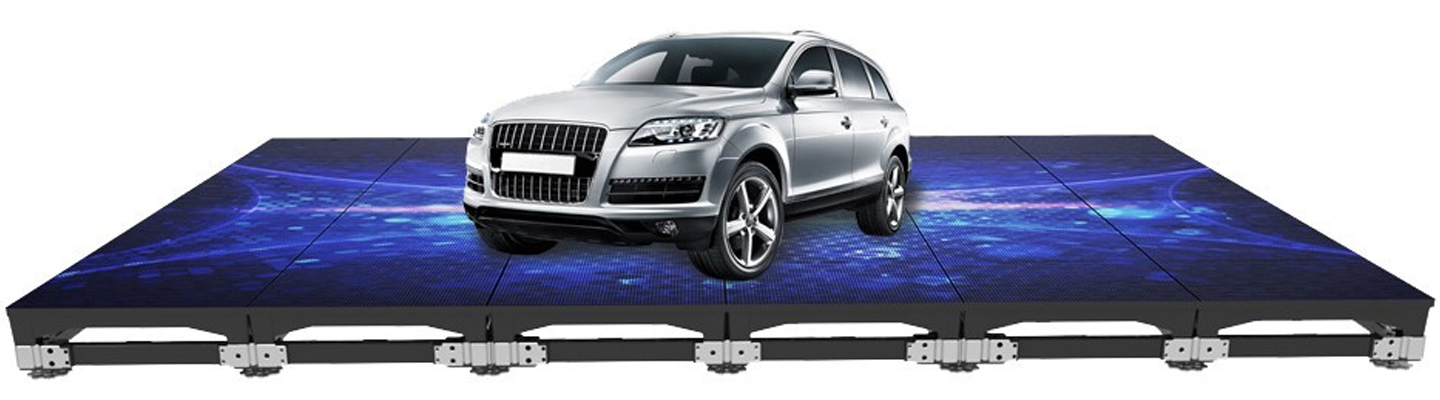

Strong Load Capacity
200 sets of materials, 2 tons of load-bearing, scratch-resistant mask, high-definition, three-year warranty
Stable Performance

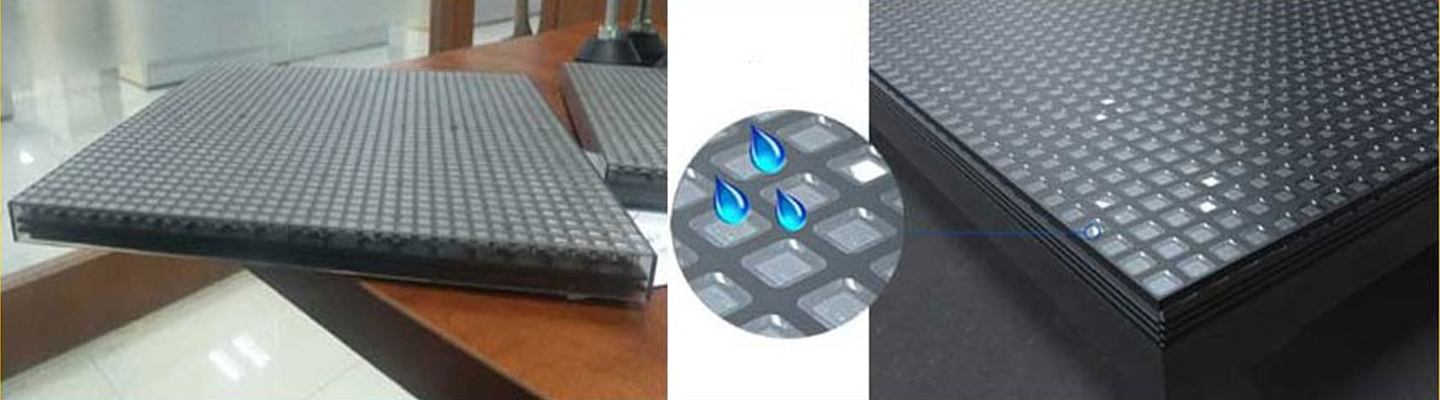

Anti-scratch mask design
Special mask, non-slip, wear-resistant and scratch-resistant

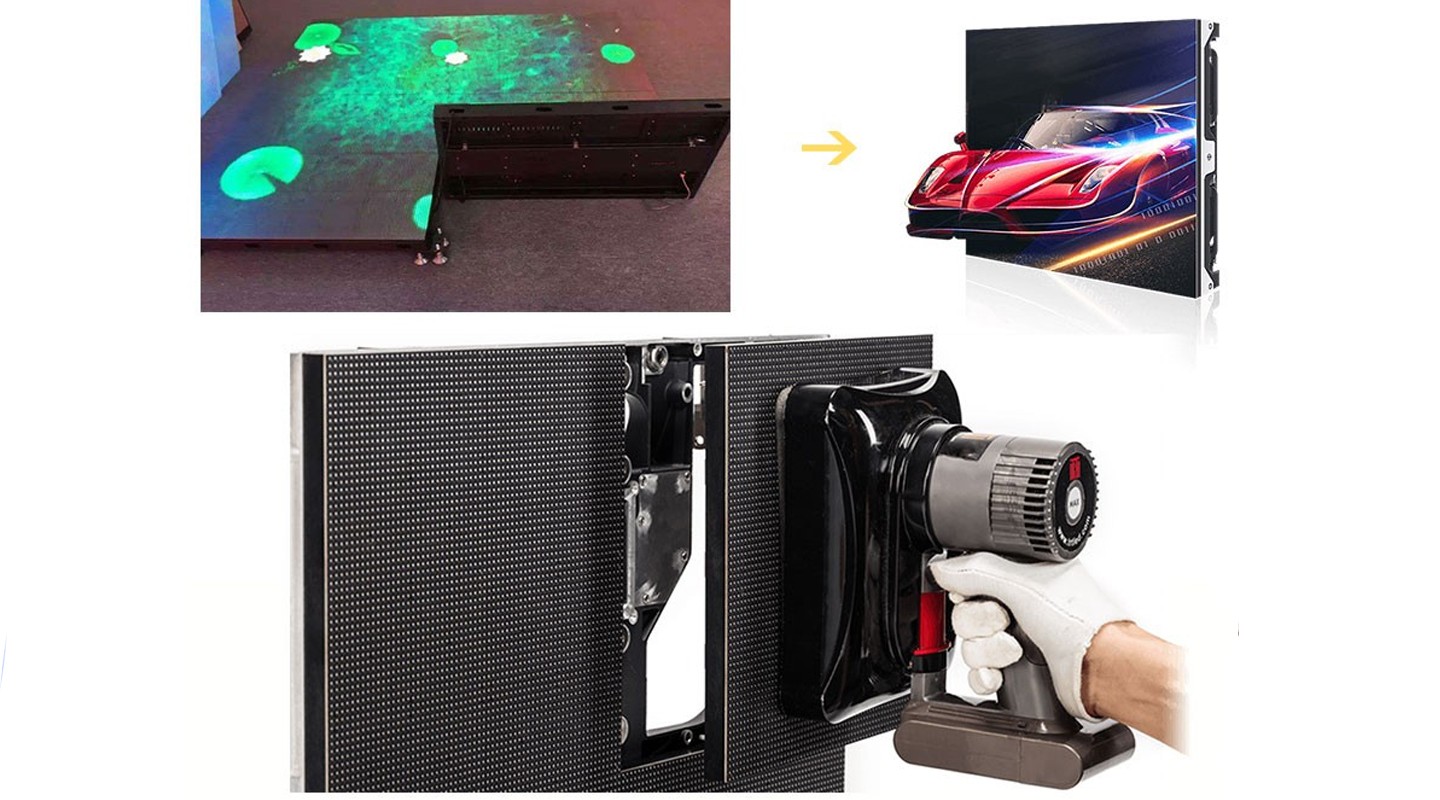

More convenient installation and maintenance
500*500 die-cast aluminum cabinet, front maintenance design
Easy to install, easy to maintain, faster and cost-saving
Parameter
| Part | Item | Indoor P3.91 LED interactive floor tile screen | Indoor P4.81 LED interactive floor tile screen | Indoor P6.25 LED interactive floor tile screen |
| Pixel Composition | Arrangement Form | Vertical | ||
| Pixel Pitch | 3.91mm | 4.81mm | 6.25mm | |
| Pixel Composition | 1R1G1B（Three in one） | |||
| Lamp Bead Model | SMD1921（Chip Ratio3：6：1） | |||
| Physical Density | 65536 dot/㎡ | 43264 dot/㎡ | 25600 dot/㎡ | |
| Module/Box Size | Module Size | 250 W×250 H(mm) | ||
| Module Resolution | 64 W×64 H(dot) | 52 W×52 H(dot) | 40 W×40 H(dot) | |
| Box Size | 500（W）×1000（H）mm | |||
| Box Weight | 20KG/Piece | |||
| Box Thickness | 8cm（Including module thickness） | |||
| Full Screen Parameters | Out of control point | ≤3/100000 | ||
| Unit Module Splicing Seam | The size of the splicing seams of the cell board gaps is the same, and ≤ 2㎜ | |||
| Optimal Distance | 5-60m | |||
| Angle of View | Horizontal 140°, vertical 140° | |||
| Surface Roughness | Maximum Error ≤ 2㎜ | |||
| Ink Color of Screen Surface | Consistent ink, no reflection | |||
| Uniformity | Module brightness is uniform, uniformity 1:1 | |||
| Power supply | Use environment | Universal indoor and outdoor | ||
| Working Humidity Range | 10-90% RH | |||
| range of working temperature | -20-65 ℃ | |||
| Maximum Power | 600W/㎡ | |||
| Average Power | 300W/㎡ | |||
| Control System | Control host operating system | XP computer + control software and hardware + playback software and hardware | ||
| Control Method | Synchronize with computer VGA (display synchronization) | |||
| Control System | DVI graphics card + full color control card + optical fiber transmission | |||
| Input Method | Computer and other peripherals，PAL/NTSC/SECAM, S-Video；VGA；RGB；Composite Video；SDI. | |||
| Screen function technical parameters | LED Driver | Constant Current Drive (16 scans) | Constant current Drive (13 scans) | Constant current Drive (10 scans) |
| Computer Display Mode | 640×480,800×600,1024×768 | |||
| Refresh Rate | 2000hz | |||
| Grayscale/Color | 8192 level | |||
| Whole Screen Brightness | 2500 cd/㎡ | |||
| Service Life | 100000 More than hours | |||
| Display Content | Video DVD, VCD, TV, images, text, animation, and others。 | |||
| Continuous trouble-free working time | ≥10000H | |||
| Interface | Standard Ethemer network interface, RS-422 communication | |||
| Communication medium, control distance | Multi-mode fiber <500m, single-mode fiber transmission <30km, Category 5 cable <100m | |||
| Protection Technology | Moisture-proof, dust-proof, anti-corrosion, anti-static, anti-lightning, and has the functions of over-current, short-circuit, over-voltage, and under-voltage protection | |||
| Software | General LED video player software (conventional), customized player (intelligent sensor) | |||
