Professional LED Screen Manufacturer

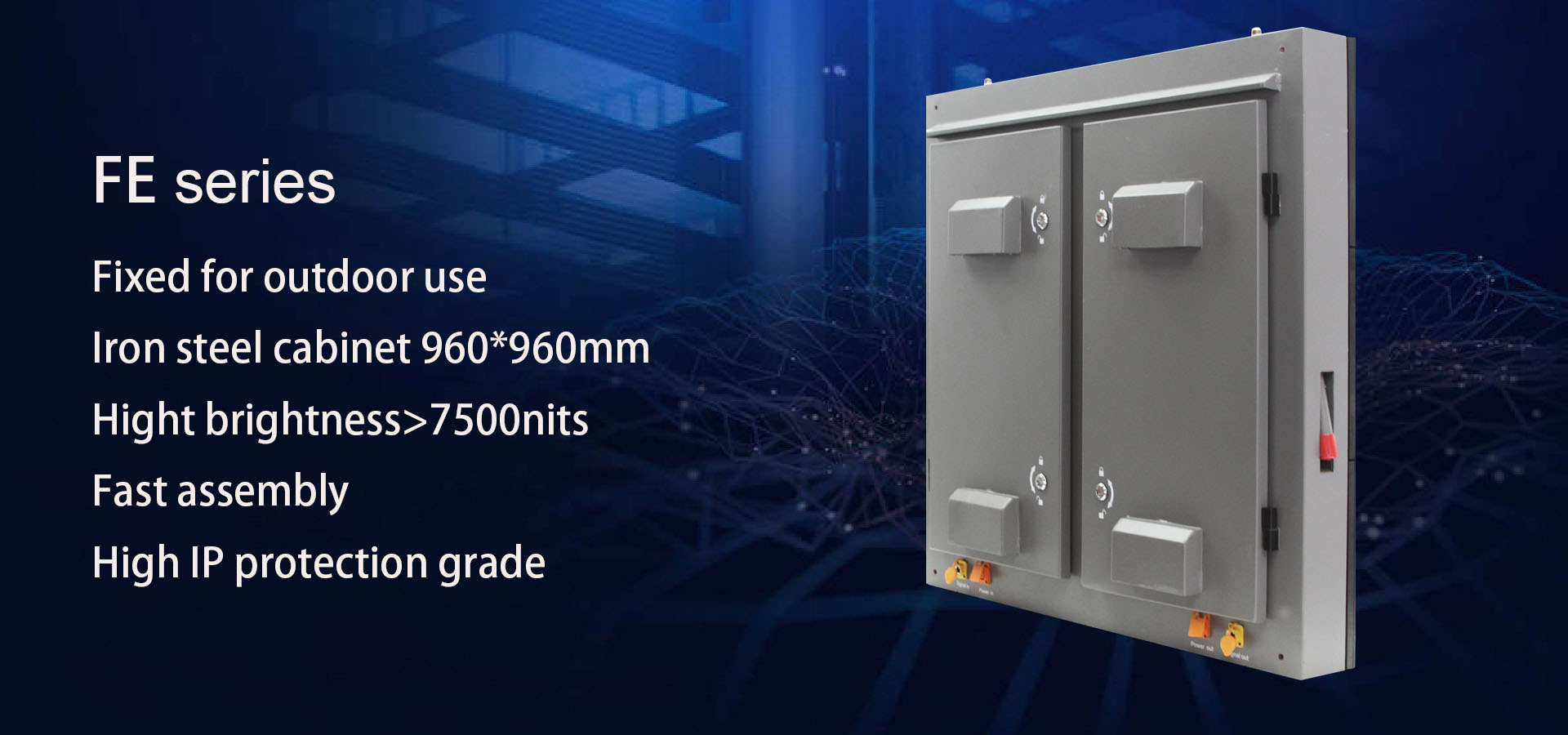

FE SERIES OUTDOOR LED DISPLAY
| P3| P4 | P5 | P6 | P8 | P10 |

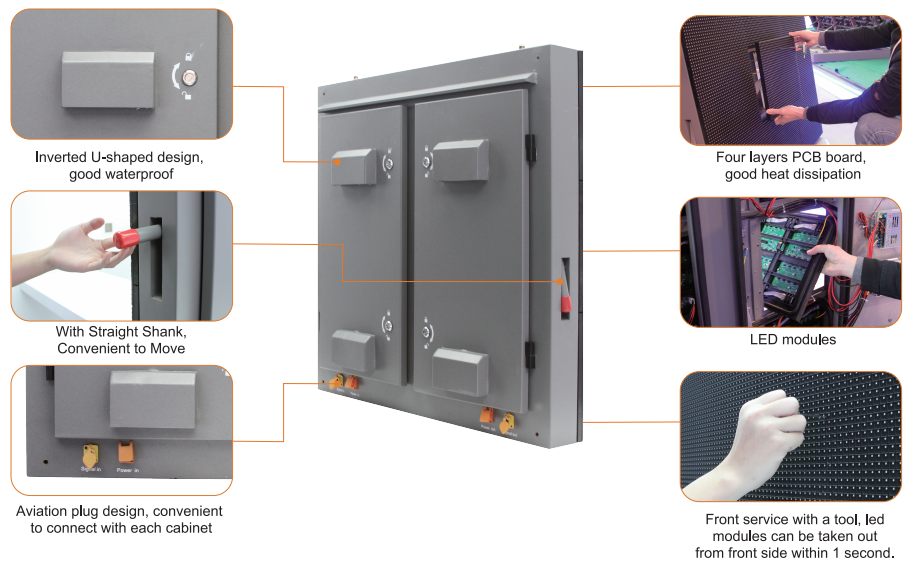

- Steel iron cabinet
- Stable performance
- Front & back access
- High waterproof IP65
- Faster & easier installation
High refresh rate, high gray scale,high brightness
Cost effective,stable quality,mature model.
Simple and quick installation
Front and back access
Light weight, easy to install or dismantle, could reduce the cost of installation.

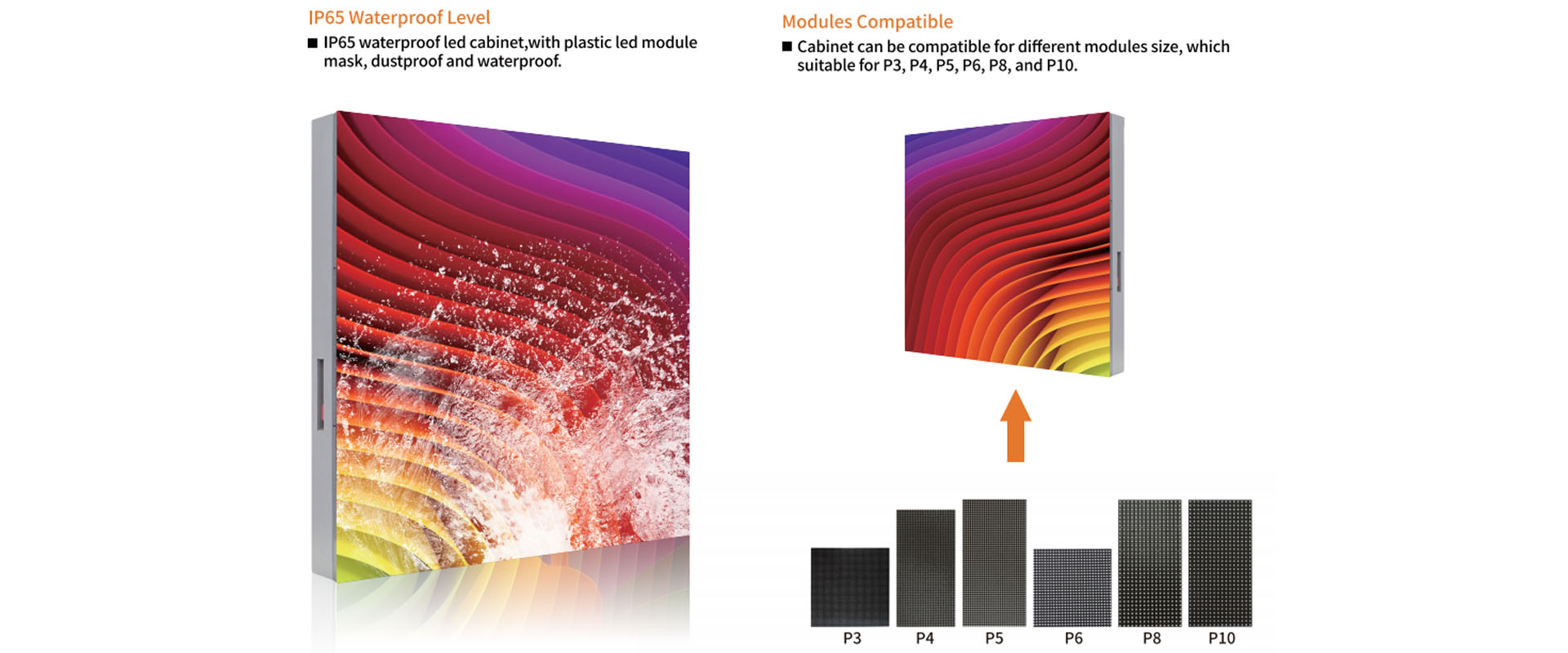

IP65, waterproof grade, suitable for outdoor use.
wide viewing angle, the display can be applied to different occasions.
Uniform color and high contrast ratio, bringing up fresh and natural image.
Low power consumption, 4-layer PCB board with fine heat dissipation.
Parameter
pixel pitch | 4mm | 5mm | 6mm | 8mm | 10mm | 16mm |
LED | SMD1921 | SMD2727 | SMD2727/3535 | SMD3535 | SMD3535 | SMD3535 |
cabinet size | 1024*768*135mm | 960*960*135mm | 960*960*135mm | 1024*768*135mm | 960*960*135mm | 1024*768*135mm |
cabinet resoluiton | 256*192 | 192*192 | 160*160 | 128*96 | 96*96 | 64*48 |
cabinet weight | 50kg | 50kg | 50kg | 50kg | 50kg | 50kg |
module size | 256*128mm | 320*160mm | 192*192mm | 256*128mm | 320*160mm | 256*256mm |
brightness | >5000nits | >5000nits | >5000nits | >5500nits | >5500nits | >6000nits |
Application | Outdoor/indoor | Outdoor/indoor | Outdoor/indoor | Outdoor/indoor | Outdoor/indoor | Outdoor/indoor |
grey scale | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
IP grade | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
Max/ave power consumption | 620W/200W | 650W/230W | 700W/240W | 700W/240W | 800W/250W | 900W/300W |
Maintenance | front and rear | front and rear | front and rear | front and rear | front and rear | front and rear |
